HOOD BEAT BK MATT F45/2

345.0612.337

Width: 45cm Finish: Dark Forest
Previous

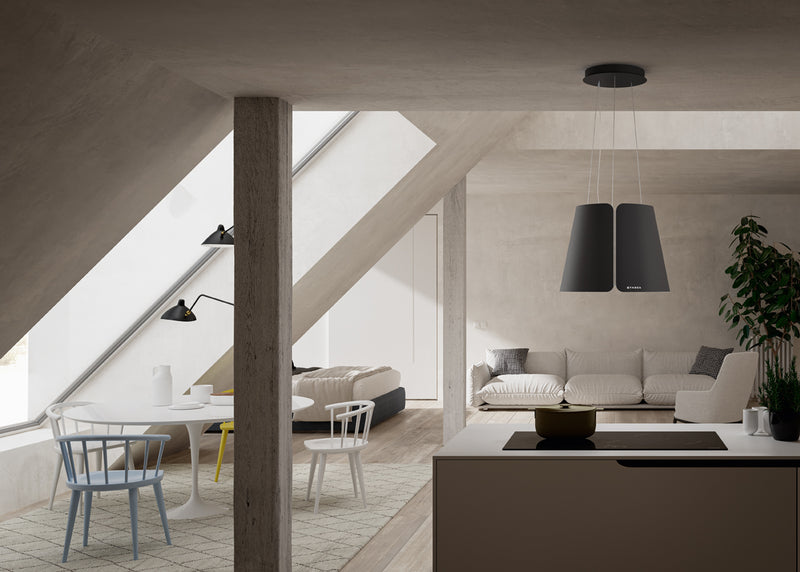

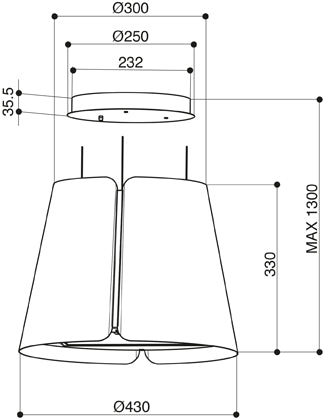

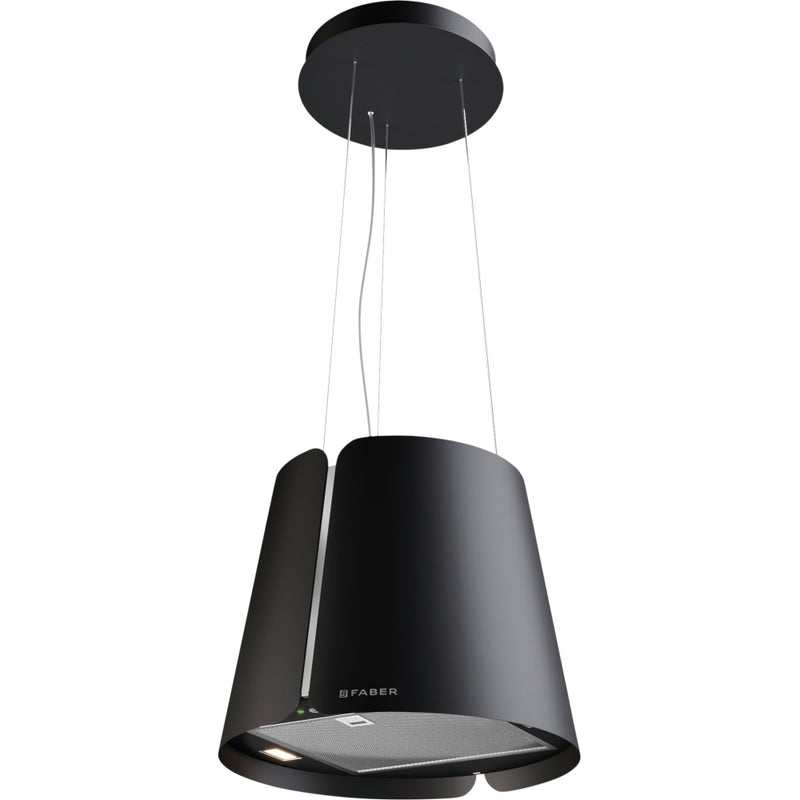

Immagine Prodotto - CAPPA BEAT BK MATT F45/2 - in colore nero matt - codice prodotto 345.0612.337 - nella misura 0-50 cm - tipologia cappa isola sospesaDisegno Tecnico - CAPPA BEAT BK MATT F45/2 - in colore nero matt - codice prodotto 345.0612.337 - nella misura  - tipologia cappa downdraftImmagine Ambientale - CAPPA BEAT BK MATT F45/2 - in colore nero matt - codice prodotto 345.0612.337 - nella misura  - tipologia cappa downdraft
Next

Technological Pluses

Energy Class

A

SOUND PRO

SOUND PRO

Reducing internal air flow turbulence and vortices, reduces noise and improves the hood sound quality

INTENSIVE SPEED

INTENSIVE SPEED

Timed intensive suction, activates the maximum suction for 6 minutes to meet special cooking needs

CHARACOL FILTER INCLUDED

CHARACOL FILTER INCLUDED

Essential for installation in filtering mode, these filters are made of a combination of active carbons that eliminate odours and purify the air. Standard filters are already included with many hoods and must be replaced every 2–3 months for optimal efficiency.

LED LIGHT

LED LIGHT

Ensures diffuse light with a consumption of only 3 watts

Energy Class

A

Tech Specs

+

Code

345.0740.252

Control

Push button

Finish

Dark Forest

Number of engines

1

Filter

Aluminium

Width

45cm

Lighting

Led S2000 3000K

Performance

+

Speed

1

2

3

BOOST

Flow

270

410

580

740

Power

150

200

240

250

Pressure

450

540

570

580

Noise

53

59

66

70

Downloads

+

Energy Label

Exploded Drawing

Exploded Drawing

Exploded Drawing

Instruction Manual

Instruction Manual

Product Fiche

Technical Drawing

Wiring Diagram
