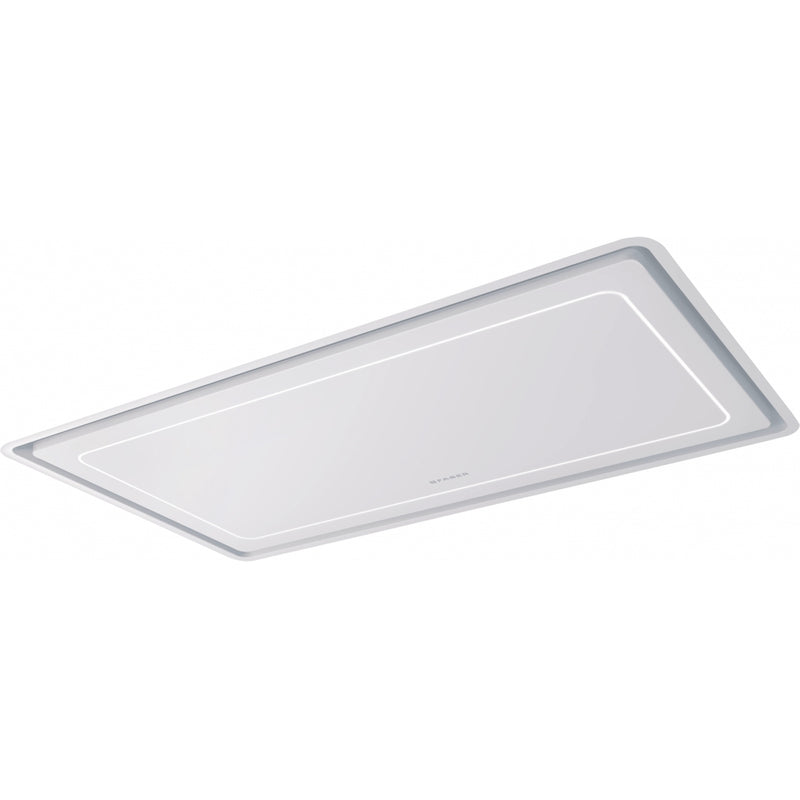

HOOD HIGH-LIGHT WH MATT KL A91

110.0456.206

Width: 91cm Finish: White Matt
HOOD HIGH-LIGHT WH MATT KL A91HOOD HIGH-LIGHT WH MATT KL A91HOOD HIGH-LIGHT WH MATT KL A91HOOD HIGH-LIGHT WH MATT KL A91HOOD HIGH-LIGHT WH MATT KL A91

Technological Pluses

Energy Class

A+

Energy Class

A+

Tech Specs

+

Code

110.0456.206

Control

Push button

Finish

White Matt

Number of engines

1

Filter

Aluminium

Width

91cm

Lighting

Led Frame 4000K

Performance

+

Speed

1

2

3

BOOST

Flow

160

340

490

700

Power

10

30

65

145

Pressure

35

160

330

700

Noise

40

56

65

72

Downloads

+

Energy Label

Exploded Drawing

Exploded Drawing

Exploded Drawing

Instruction Manual

Instruction Manual

Product Fiche

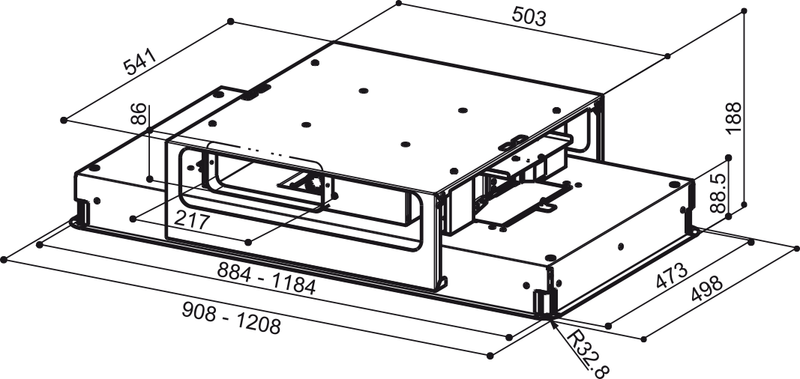

Technical Drawing

Wiring Diagram
